Product advantages
Equipped with a removable stand, you can easily adjust the position of the monitor to meet various viewing needs.
After moving the device to the designated location, twist the fixed switch on the wheel side to stabilize it.
Movable bracket
Move to any location you want
110'' 138'' 165''
Multiple sizes available
Multiple interfaces
USB 3.0 USB 3.0
500Mb/s 4K
Trasmission speed High definition display
Equipped with two USB3.0 interfaces and two HDMI2.0 interfaces

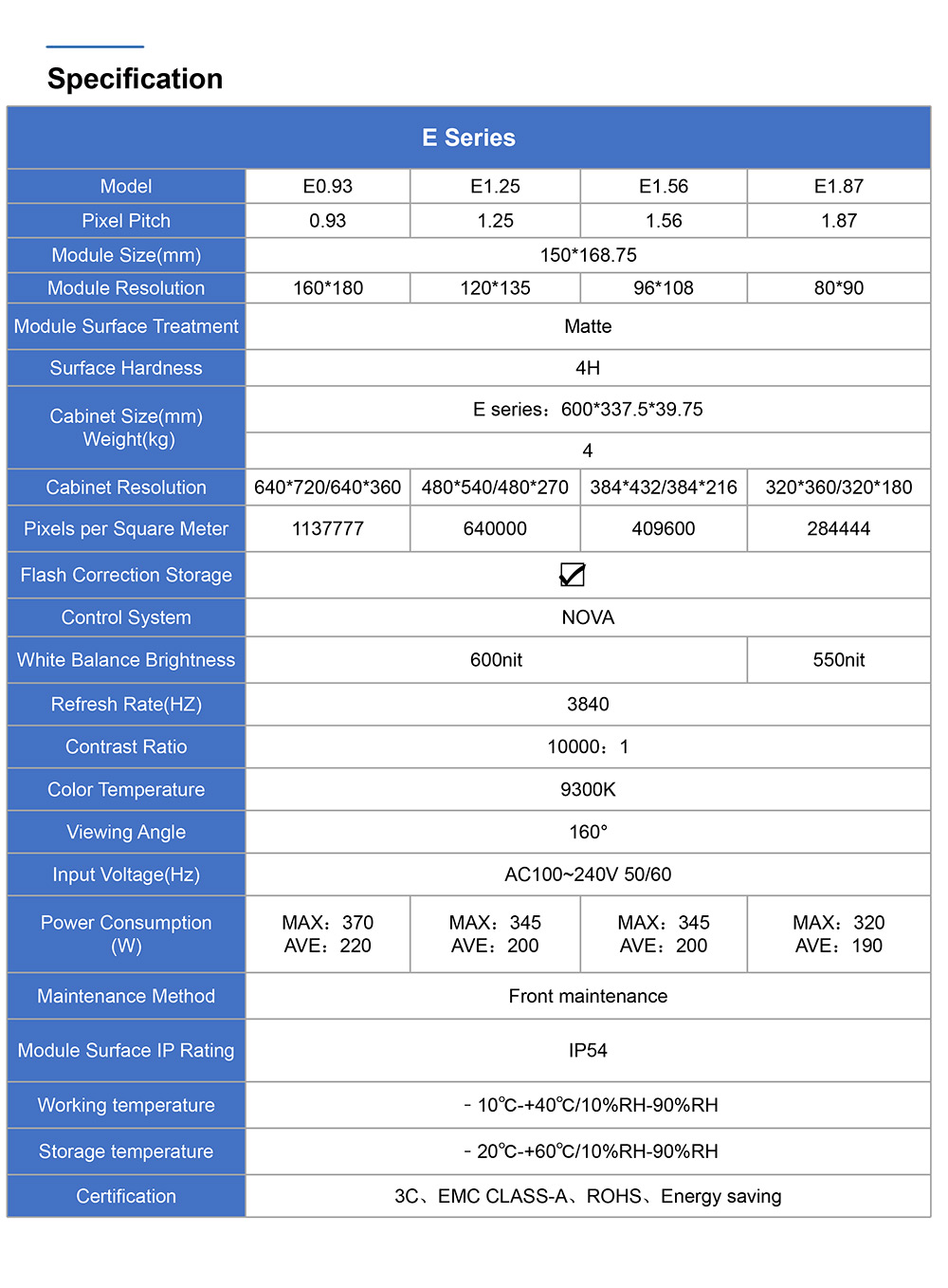

Specification
FULL FLIP CHIP COB E Series |
Pixel Pitch | 0.93 | 1.25 | 1.56 | 1.87 |
Module Size(mm) | 150*168.75 |
Module Resolution | 160*180 | 120*135 | 96*108 | 80*90 |
Module Surface Treatment | Matte |
Surface Hardness | 4H |
Cabinet Size (mm) Weight(kg) | 600*337.5*39.75 |
4 |
Cabinet Resolution | 640*720/640*360 | 480*540/480*270 | 384*432/384*216 | 320*360/320*180 |
Pixels per Square Meter | 1137777 | 640000 | 409600 | 284444 |
Flash Correction Storage | ☑️ |
Control System | NOVA |
White Balance Brightness | 600nit | 550nit |
Refresh Rate(HZ) | 3840 |
Contrast Ratio | 10000：1 |
Color Temperature | 9300K |
Viewing Angle | 160° |
Input Voltage | AC100~240V 50/60Hz |
Power Consumption (W) | MAX：370 AVE：220 | MAX：345 AVE：200 | MAX：345 AVE：200 | MAX：320 AVE：190 |
Maintenance Method | Front maintenance |
Module Surface IP Rating | IP65 |
Working temperature | ﹣10℃-+40℃/10%RH-90%RH |
Storage temperature | ﹣20℃-+60℃/10%RH-90%RH |
Certification | 3C、EMC CLASS-A、ROHS、Energy saving |
