Equipped with PWM high-refresh chips, achieving a refresh rate of over 7680Hz, meeting the needs of high-speed dynamic image playback in sports scenarios. The display ensures clear visuals with no motion blur.

High resolution with stable image display.
Every detail is vividly clear, with no motion blur and flicker-free screen performance.

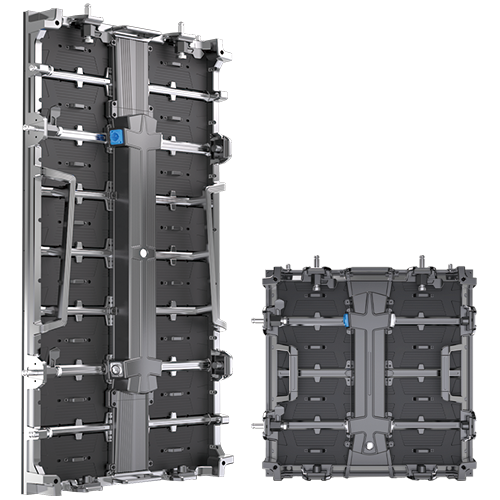

Sleek and refined design with standardized cabinets and exceptional craftsmanship.
Significantly enhances installation speed and display stability, ensuring easier and safer maintenance.

Customizable cabinets for seamless splicing in any configuration.Whether inner arcs, outer arcs, or curved screens, achieve unlimited creative possibilities.


Suitable for exhibitions, product launches, immersive XR experiences, and large-scale events.

Hoisting and ground-mounted systems with simple installation for diverse applications

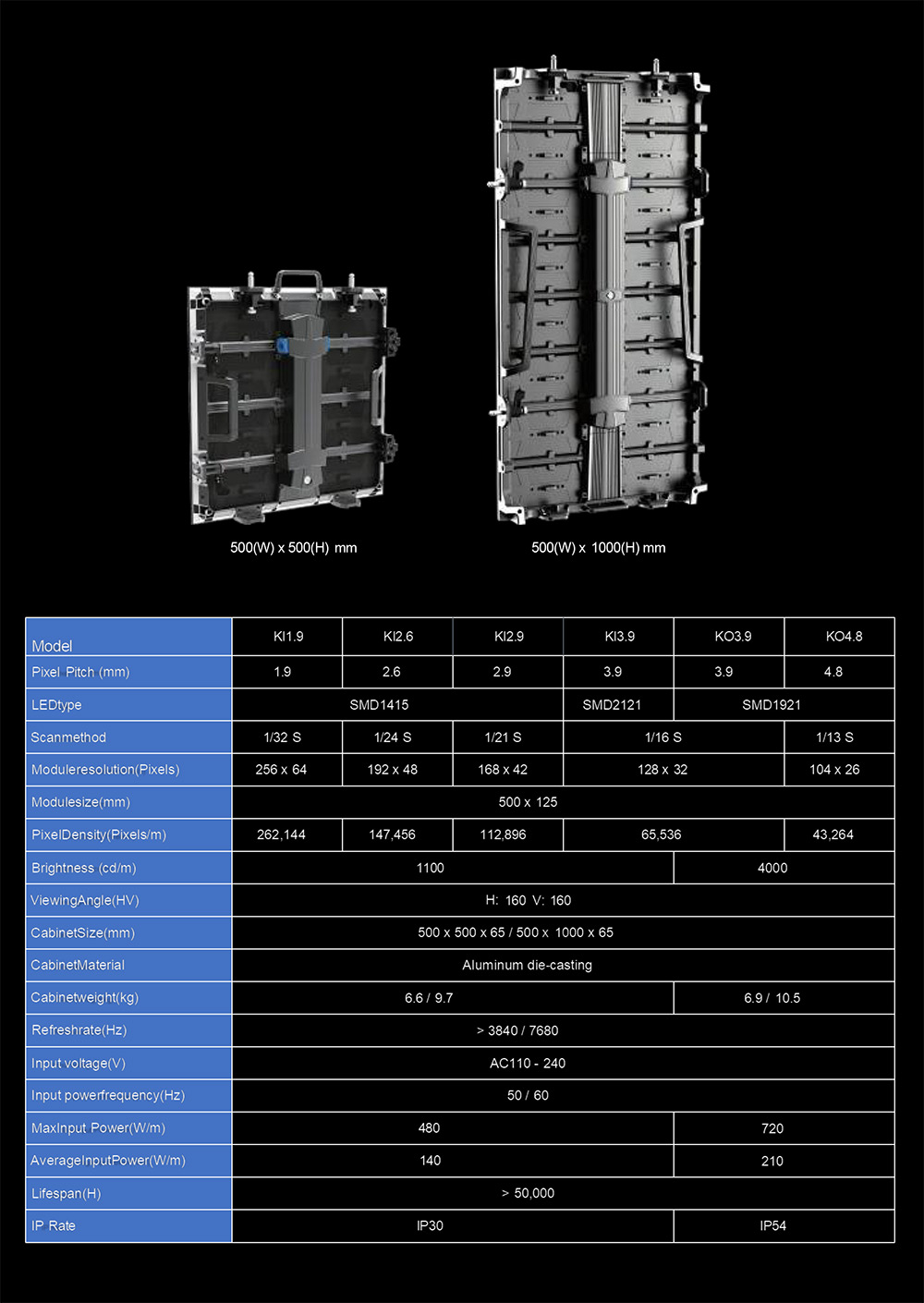

SPECIFICATIONS | INDOOR | OUTDOOR | |||||||
Pixel Pitch (mm) | 1.9 | 2.6 | 2.9 | 3.9 | 4.8 | 2.6 | 2.9 | 3.9 | 4.8 |
LEDtype | SMD1415 | SMD2121 | SMD1921 | ||||||
Scanmethod | 1/32 S | 1/24 S | 1/21 S | 1/16 S | 1/13 S | 1/24 S | 1/21 S | 1/16 S | 1/13 S |
Moduleresolution(Pixels) | 256 x 64 | 192 x 48 | 168 x 42 | 128 x 32 | 104 x 26 | 192 x 48 | 168 x 42 | 128 x 32 | 104 x 26 |
Modulesize(mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
PixelDensity(Pixels/m) | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 | 147,456 | 112,896 | 65,536 | 43,264 |
Brightness (cd/m) | 800-1100 | 5000-6000 | |||||||
ViewingAngle(HV) | H: 160 V: 160 | ||||||||
CabinetSize(mm) | 500 x 500 x 85 / 500 x 1000 x 85mm | ||||||||
CabinetMaterial | Aluminum die-casting | ||||||||
Cabinetweight(kg) | 7.5 / 12.5 | ||||||||
Refreshrate(Hz) | 7680 Hz | ||||||||
Input voltage(V) | AC110 - 240 | ||||||||
Input powerfrequency(Hz) | 50 / 60 | ||||||||
MaxInput Power(W/m) | 780 | ||||||||
AveragelnputPower(W/m) | 260 | ||||||||
Lifespan(H) | > 100,000 | ||||||||
IP Rate | IP31 | IP65 | |||||||
