Creative designs

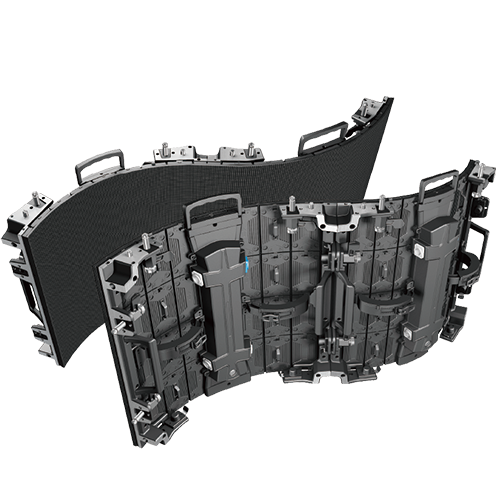

9 cabinets can be assembled into an outer arc ring screen
Multi-funetionalhandles
Wide range angles for concaveand convex
500*125 Module Design
Rapid Maintenance Dismantling Device
CompatibleSplicing Solution
Multiple products can be matched and connected
Specification
Product |
P2.6 Indoor |
P2.9 Indoor |
P3.9 Indoor |
Model No. |
P2.6 |
P2.9 |
P3.9 |
Pixel Pitch (mm) |
2.604 |
2.976 |
3.9062 |
LED Type |
SMD indoor 1515 |
SMD indoor 1515 |
SMD indoor 2020 |
Model Resolution(dots) |
192*48 |
168*42 |
128*32 |
Module Pixels |
9216 |
7056 |
4096 |
Module Size (mm) |
500*125 |
500*125 |
500*125 |
Pixels Density (dot/ ㎡) |
147456 |
112896 |
65536 |
Viewing Distance (m) |
3 |
5 |
8 |
White Balance Brightness (nits) |
800~1000 |
800~1000 |
800~1000 |
White Balance Temperature (K) |
6000~10000 |
6000~10000 |
6000~10000 |
Viewing Angles (°) |
H:160 V140 |
H:160 V140 |
H:160 V140 |
Cabinet Resolution (dots) |
192*192 |
168*168 |
128*128 |
Cabinet Size (mm) |
500*500*65 |
500*500*65 |
500*500*65 |
Cabinet Material |
Aluminum die-casting |
Aluminum die-casting |
Aluminum die-casting |
Cabinet Weight (kg) |
≈6.6kg |
≈6.6kg |
≈6.6kg |
Grayscale |
14~16 Bit x RGB |
14~16 Bit x RGB |
14~16 Bit x RGB |
Brightness Adjustment |
100 level |
100 level |
100 level |
Frame Frequency (Hz) |
60Hz / 50Hz |
60Hz / 50Hz |
60Hz / 50Hz |
Refresh Rate (Hz) |
7680 |
7680 |
7680 |
Driving method |
1/24s constant current driving |
1/21s constant current driving |
1/16s constant current driving |
Working Voltage (V) |
AC100~240, AC180~240 |
AC100~240, AC180~240 |
AC100~240, AC180~240 |
Input Frequency (Hz) |
50/60 |
50/60 |
50/60 |
Max Power Consumption per Cabinet (W) |
≈ 120 |
≈ 120 |
≈ 120 |
Average Consumption per Cabinet (W) |
≈60 |
≈60 |
≈60 |
Lifespan (H) |
≥50000 |
≥50000 |
≥50000 |
IP Rate |
IP30 |
IP30 |
IP30 |
