Customization Requirements for Cabinet Dimensions

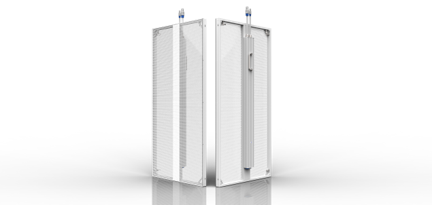

Installation method of cabinet
Cabinet pre-drilled mounting holes. Cabinets are fastened to the building steel frame with self-tapping screws via connecting plates.
Product Installation Method
Specifications
Model | TR P3 | TR P6 | TR P10 |
LED Lamp Model | SMD 2121 | SMD 2121 | SMD 2727 |
Pixel Pitch (Mm) | 3.91-3.91 | 6.25-6.25 | 10.0-10.0 |
Pixel Density (Dot/㎡) | 65536 | 25600 | 10000 |
Transmittance | 92% | 95% | 95% |
Module Dimension H*W (Mm) | 1000*1000 | 1000*1000 | 1000*1000 |
Cabinet Display Size H*W (Mm) | 1000*1000 | 1000*1000 | 1000*1000 |
Module Resolution (Dot) | 256*256 | 160*160 | 100*100 |
Brightness (Nits) | ≥3000 | ≥5000 | ≥7000 |
Max Power Consumption (W/㎡) | 865 | 865 | 800 |
Average Power Consumption (W/㎡) | 330 | 330 | 300 |
Module Weight (Kg/pc) | 6 | 6 | 8 |
Color Temperature (K) | 3000~10000 | 3000~10000 | 3000~10000 |
Scan Mode | Static Driving | Static Driving | Static Driving |
Refresh Rate (Hz) | 60~120 | 60~120 | 60~120 |
LED Lamp Service Life(Hours) | ≥100,000 | ≥100,000 | ≥100,000 |
Gray Scale(Bit) | 16 | 16 | 16 |
IP Rating | IP30 | IP30 | IP30 |
Input Operating Voltage | AC100~240V ,50-60HZ | AC100~240V ,50-60HZ | AC100~240V ,50-60HZ |
Module Operating Voltage | DC 4.2V ±0.2V | DC 4.2V ±0.2V | DC 4.2V ±0.2V |
Operating Temperature | -20℃ ~ 50℃ | -20℃ ~ 50℃ | -20℃ ~ 50℃ |
Operating Humidity | 20%RH ~ 85%RH, Non-condensing | 20%RH ~ 85%RH, Non-condensing | 20%RH ~ 85%RH, Non-condensing |
Storage Temperature | -20℃ ~ 60℃ | -20℃ ~ 60℃ | -20℃ ~ 60℃ |
Storage Humidity | 10%RH ~ 85%RH, Non-condensing | 10%RH ~ 85%RH, Non-condensing | 10%RH ~ 85%RH, Non-condensing |
Installation Method | Fixed Mount / Hanging Mount | Fixed Mount / Hanging Mount | Fixed Mount / Hanging Mount |
